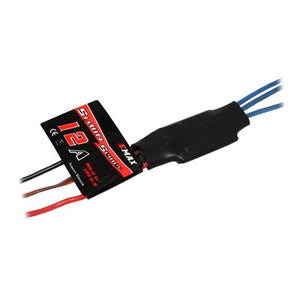

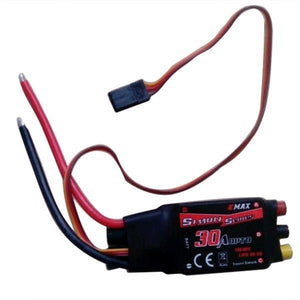

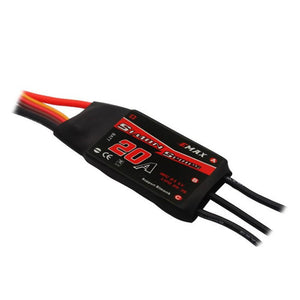

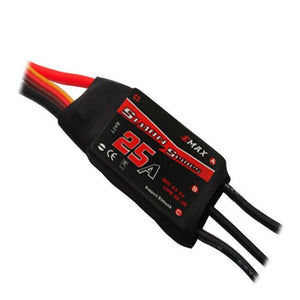

Brand Name: Emax
Item Name: Simonk Series ESC
Current: 12A 20A 25A 30A 40A available
Input:? 2-3S LiPo
| Item | continuous?current | burst?current?(10A) | battery(cell) | Dimension | Wight(g) | BEC?mode | BEC?output | programmable |
| 12A | 12A | 15A? | 2~3 | 22*17*7 | 8 | linear | 1A/5V | YES |
| 20A | 20A | 25A? | 2~3 | 55*28*7 | 28 | linear | 2A/5V | YES |
| 25A | 25A | 30A | 2~3 | 55*28*7 | 28 | linear | 2A/5V | YES |
| 30A | 30A | 40A | 2~3 | 55*28*7 | 28 | linear | 2A/5V | YES |
| 40A-UBEC | 40A | 50A | 2~6 | 73*28*12 | 41 | switch | 3A/5V | YES |
Features:
Based on Simon K firmware, further optimized to perfect drive performance.
Low-voltage protection, over-heat protection and self-check functions.
Separate power supply for MCU and BEC, enhancing the ESC¡¯s ability of eliminating magnetic interference.
Parameters of the ESC can be set via program card or transmitter.
Throttle range can be set to be compatible with different receivers.
Equipped with built-in BEC.
Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.
Note: this ESC can not work with pixhawk flight controller.
Emax ESC Manual,Please?Click Here!
Package Included:
1 x Emax ESC
