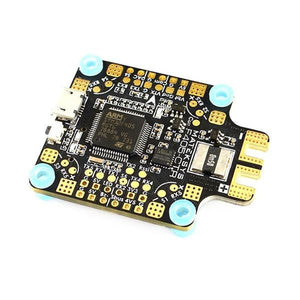

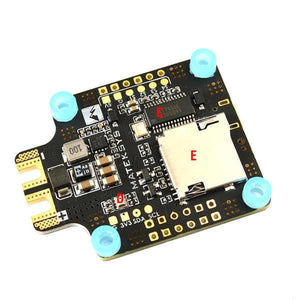

Matek Systems BetaFlight F405-CTR Flight Controller Built-in PDB OSD BEC Current Sensor for RC Drone
Matek Systems BetaFlight F405-CTR Flight Controller Built-in PDB OSD BEC Current Sensor for RC Drone
Matek Systems BetaFlight F405-CTR Flight Controller Built-in PDB OSD BEC Current Sensor for RC Drone

  • New

RcGoing

Matek Systems BetaFlight F405-CTR Flight Controller Built-in PDB OSD BEC Current Sensor for RC Drone

Sale price $43.86

Shipping calculated at checkout

10000 in stock

Spend $250 to get free shipping

Shop with confidence

  • Fast shipping
  • Easy exchanges
  • Trusted reviews
  • Eco materials
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Specifications?:
Brand name: Matek Systems
Item name: BetaFlight F405-CTR
Size: 36x46mm PCB with 30.5mm mounting holes
Weight: 10g

FC Specifications:?
MCU: 168MHz STM32F405
IMU: MPU6000 accelerometer/gyro (SPI)
Baro: BMP280 (I2C)
OSD: BetaFlight OSD w/ AT7456E chip
Blackbox: MicroSD card slot (SD/SDHC)
VCP, UART1, UART2, UART3, UART4, UART5
Built in inverter for SBUS input (UART2-RX)
PPM/UART Shared: UART2-RX
SoftSerial on TX2, S5 or S6 optional
Camera control on S6 or DAC optional
Smartaudio & Tramp VTX protocol supported
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
?
PDB Specifications:
Input: 6~30V (3~6S LiPo) w/TVS protection
PDB: 4x30A (Max.4x46A), 6 layers*2oz copper PCB
BEC: 5V 2A cont. (Max.3A)
LDO 3.3V: Max.300mA for Spektrum RX
Current Sensor 184A (Scale 179)
Battery Voltage Sensor: 1:10 (Scale 110)

Features:
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
6x PWM / DShot outputs without conflict
5x UARTs
1x Group of ?G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)
1x pair I2C1 pads
1x Side-press button for BOOT(DFU) mode

package included:
1x Matek Systems BetaFlight F405-CTR
1x?Rubycon ZLH 35V/470uF (Low ESR)
6x silicon grommets M4 to M3
1x FR4 PCB Plate 36*36*1mm
