Specification:
Brand Name: iFlight
Model: XING-E 2207
Item Name:??2207 1700KV 1800KV 2450KV 2750KV?Brushless Motor?
KV:?1700KV /1800KV /2450KV /2750KV ( Optional)
Version: CW Screw Thread
Quantity: 1 PC
Input Voltage: 3-6S @?1700KV / 1800KV ;?
? ? ? ? ? ? ? ? ? ? ? ?2-4S @?2450KV / 2750KV
Configuration: 12N14P
Stator Diameter: 22mm
Stator Length: 7mm
Shaft Diameter: 5mm
Motor Dimension: 28.5x19.7mm (Dia*Len)
Weight: 33.8g
Idle Current(10) @10V: less than 1.1A (1700KV);?? ? less than?1.2A (1800KV);?
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??less than?2.0A(2450KV);? ? ??less than?2.2A (2750KV)? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??
Max. Con. Power (180S): 778.1W@1700KV ; 845.3W@1800KV; 682.1W@2450KV; 800.5W@2750KV
Internal Resistance: 90m¦¸@1700KV; 81.5m¦¸@1800KV; 46.8m¦¸@2450KV ; 41m¦¸@2750KV
Max. Current (180S): 32.42A@1700KV; 35.22A@1800KV; 42.63A@2450KV; 50.03A@2750KV

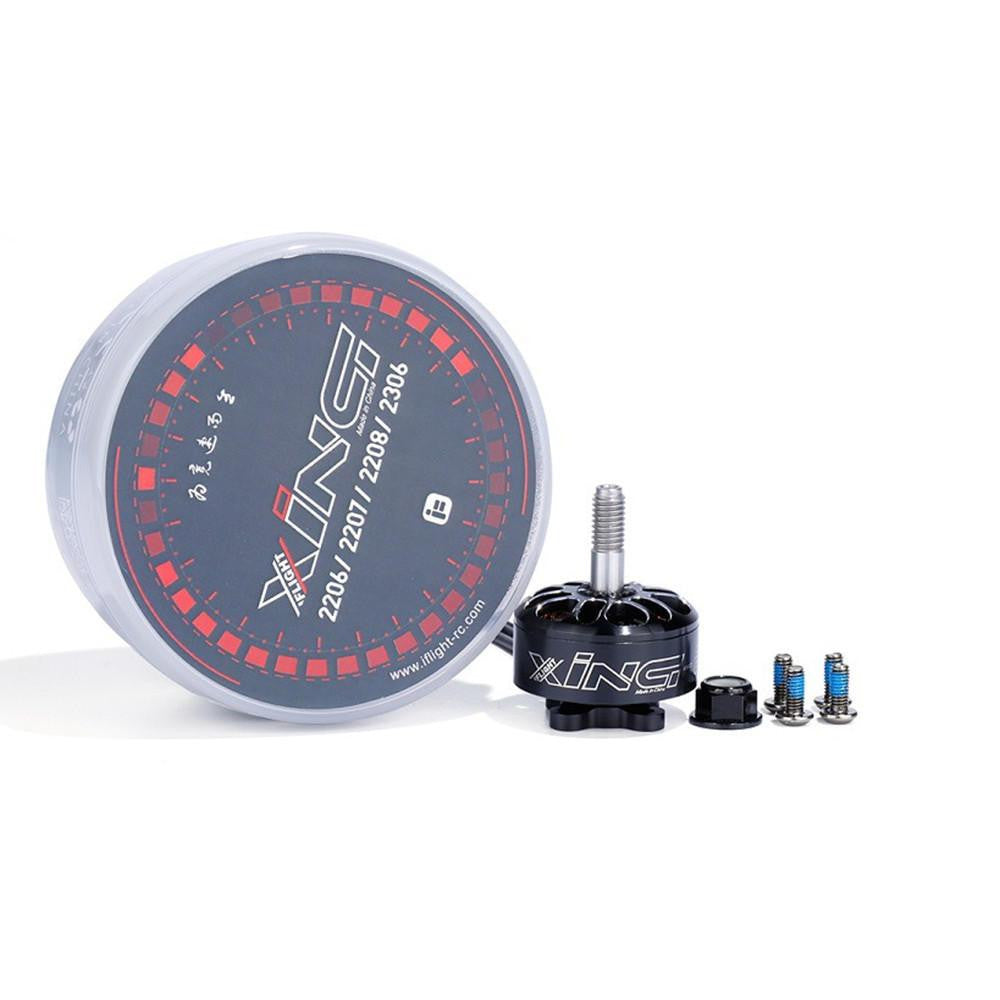

Package Included:
1x iFlight XING-E 2207 Motor
1x Motor Nut
4x Screws
